    Robotic Testing System (100kN-2000kN)

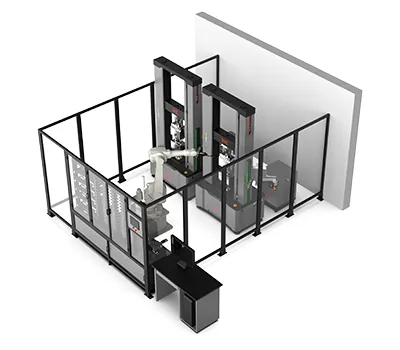

    Robotic Automated Bar Tensile Testing System

    The 2000kN robotic automated bar tensile testing platform integrates a servo-hydraulic universal testing frame with a fully automated workflow for specimen handling, measurement, alignment, and test execution.

    This configuration incorporates hydraulic side-action grips, an automatic extensometer, alignment modules, ABB industrial robots, a specimen storage rack, a high-precision control platform, and dedicated automation software, enabling fully unattended tensile testing of bar and rebar specimens. It is ideal for steel mills, construction-material producers, research institutions, universities, inspection centers, and quality-supervision agencies that require large-batch tensile testing with maximum repeatability and minimal operator involvement.

    Standards

    ISO 7500-1, ISO 9513, ISO6892, ISO 15630, ISO 15835, BS 4449, ASTM E8, ASTM E 83, ASTM E4, ASTM A370, ASTM A416

    Core components

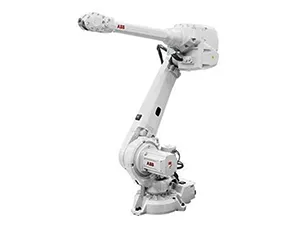

    • Robotic armRobotic arm

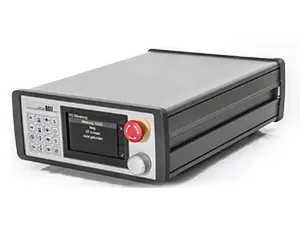

    • DOLI digital controller (Germany)DOLI digital controller (Germany)

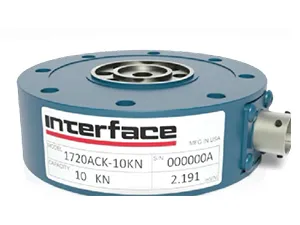

    • Interface load cell (USA)Interface load cell (USA)

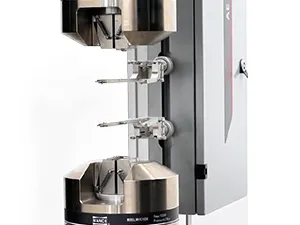

    • Automatic extensometerAutomatic extensometer

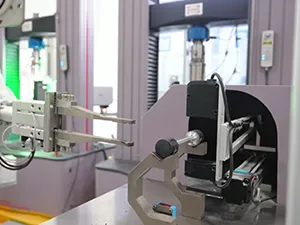

    • Diameter measurement moduleDiameter measurement module

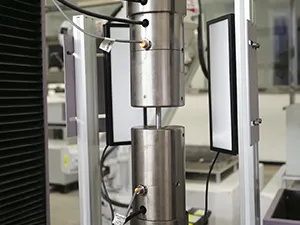

    • Shoulder gripsShoulder grips

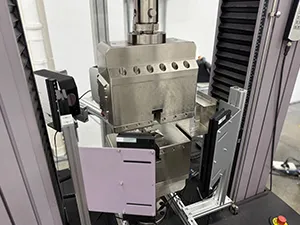

    • Hydraulic side-action gripsHydraulic side-action grips

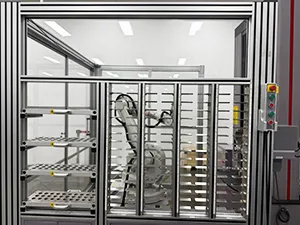

    • Specimen storage rackSpecimen storage rack

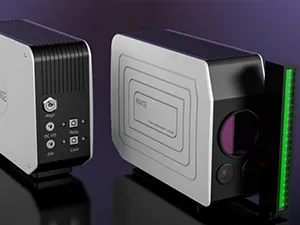

    • Video extensometerVideo extensometer

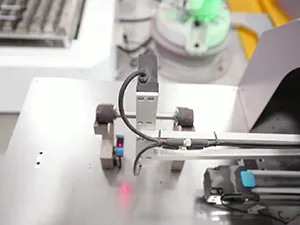

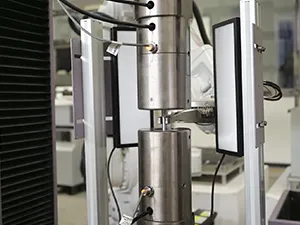

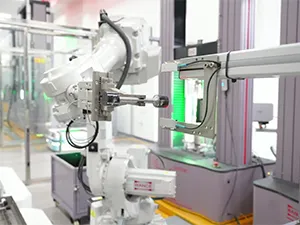

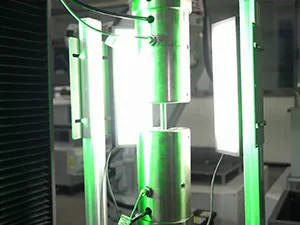

    Testing Workflow
    • Testing Workflow
    • Testing Workflow
    • Testing Workflow
    • Testing Workflow
