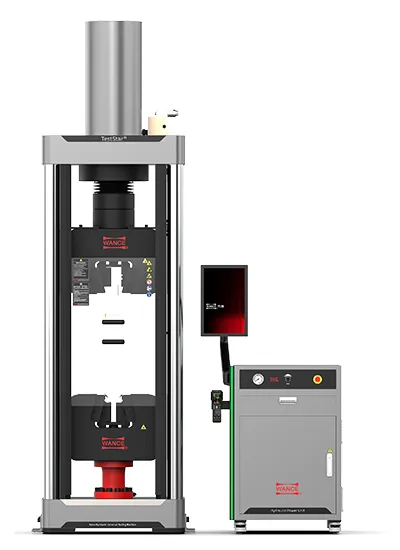

Servo-Hydraulic Universal Testing Machine, Single Space, Wedge Action Grip
The utilizes a top-mounted actuator design, enabling a dual-acting differential cylinder to perform both tensile and compression tests within a single test space. A zero-backlash load frame and an actuator with adjustable vertical positioning provide flexible test-space configuration and ensure long-term stability under demanding testing conditions. Primarily designed for tensile testing of metallic materials, the HUT-D series supports force, displacement, and strain closed-loop control, with seamless transitions between control modes. Test results are automatically calculated by the software and can be printed or exported in multiple formats.
Rebar, welded components, castings, fasteners, chains, etc.
- ISO 7500-1, ISO 9513, ISO6892, ISO 15630, ISO 15835, BS 4449, ASTM E8, ASTM E 83, ASTM E4, ASTM A370, ASTM A416

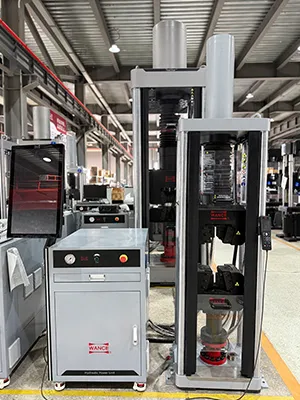

Energy-Efficient and Eco-Friendly Design
Compared with the previous generation, the new HUT-D Series delivers significant performance improvements:
- 15% reduction in noise
- 74% reduction in power consumption during testing
- 8%-29% reduction in footprint, depending on model size

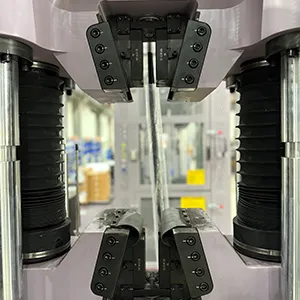

High-Stiffness Load Frame
Frame stiffness has been increased by 120%-188% compared with the previous generation. This improves measurement accuracy and reduces machine vibration during testing.

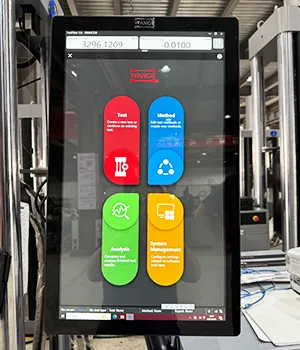

High Speed, High Efficiency, and Easy Operation
Upgraded hydraulic power unit and optimized piping design increase no-load running speed and overall testing efficiency. Optional integrated touchscreen PC provides intuitive machine control and quick test setup.

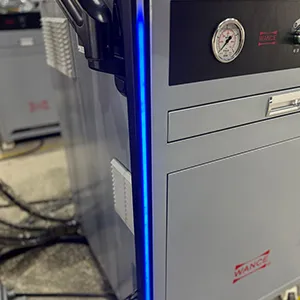

Smart Visual Interaction System
An intelligent four-color status indicator (compliant with IEC 60073) provides clear visual feedback on machine status. This intuitive signaling system helps operators avoid improper actions and enhances overall operational safety and efficiency.

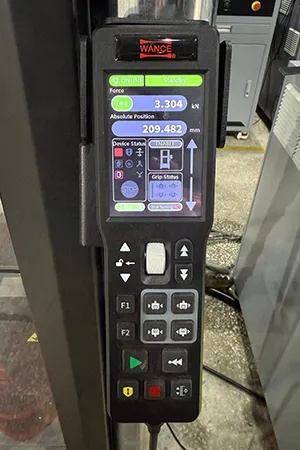

Intelligent Handset Controller
The new Handset V3.0 features a 3.5-inch high-resolution touchscreen, displaying real-time load, crosshead position, machine status, and grip status. The touchscreen interface allows users to enable the servo system directly.
The jog wheel enables servo activation and supports quick language switching. Dedicated function keys provide grip open/close control and allow rapid return to a preset initial position.
- Fine Adjustment Jog Wheel Control
- Grip Open/Close Control
- Specimen Protection Function
- Test Start/Stop
- Crosshead Up/Down Control
- Return to Initial Position
- Initial Position Memory
| Model | HUT605D | ||||
| Capacity,kN | 300 | 600 | 1000 | 2000 | |
| Measured accuracy | Class 0.5 | ||||
| Load accuracy | ±0.5% of reading, down to 1% of load cell capacity | ||||
| Load resolution | 1/600,000FS | ||||
| Loading rate, FS/s | 0.02% -2% | ||||
| Position accuracy | ±0.5% or 0.13mm, whichever is bigger | ||||
| Position resolution, mm | 0.004 | ||||
| Strain accuracy | ± 0.5% of reading down to 2% of full range to ASTM E83 class B-1, B-2 or ISO 9513 class 0.5 extensometer | ||||
| Strain resolution | ± 1/600,000FS | ||||
| Stiffness, kN/mm | 520 | 700 | 950 | 1820 | |
| Up speed, mm/min | 630 | 340 | 625 | 305 | |
| Down speed, mm/min | 450 | 710 | 1400 | 650 | |
| Distance between columns, mm | 520x 390 | 550x370 | 650x400 | 650x400 | |
| Distance between tensile grips, mm H | 500 | 500 | 600 | 780 | |
| Max. compression space, mm | 320 | 300 | 395 | 500 | |
| Diameter of round specimens, mm | ⌀5-⌀12 ⌀12-⌀22 | ⌀5-⌀12 ⌀12-⌀22 ⌀22-⌀32 | ⌀5-⌀12 ⌀12-⌀22 ⌀22-Ф32 ⌀32-⌀40 | ⌀5-⌀12 ⌀12-⌀22 ⌀22-⌀32 ⌀32-⌀50 | |
| Thickness of flat specimen, mm | 2-13, 13-25 | 2-16, 16-30 | 2-25, 25-50 | 10-40, 40-70 | |
| Compression platen, mm | ⌀150 | ⌀150 | 200x200 | ⌀240 | |
| Piston travel, mm | 500 | 500 | 600 | 600 | |
| Power, kW | 4.5 | 4.5 | 12.5 | ||
| Electric supply | 380V±10%, 50Hz, three-phase | ||||

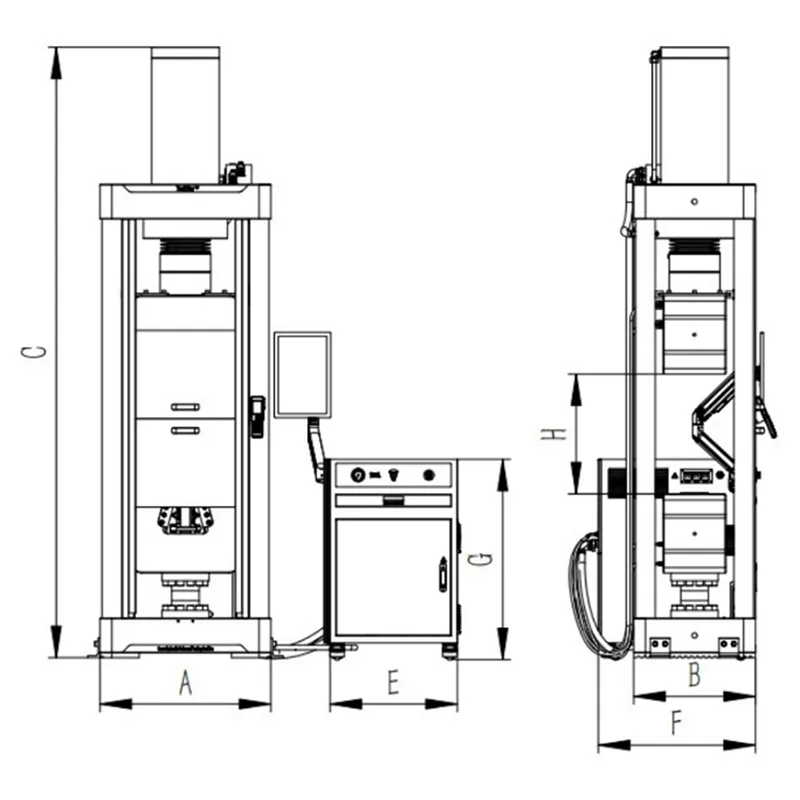

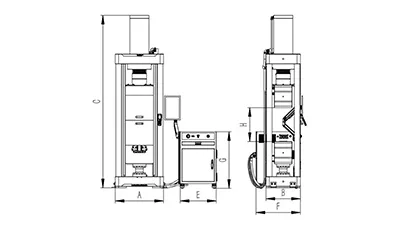

| Dimension, mm AxBxC | 600x470x2470 | 730x550x2700 | 870x620x3110 | 1100x800x4055 | |
| Machine weight, kg | 1100 | 2000 | 4200 | 8500 | |
| HPU size, mm ExFxG | 650x800x1010 | ||||
| HPU weight, kg | 260 | ||||
| HPU oil | #46 hydraulic oil,108 liter | ||||
