    EBT-A Series (20kN-100kN)

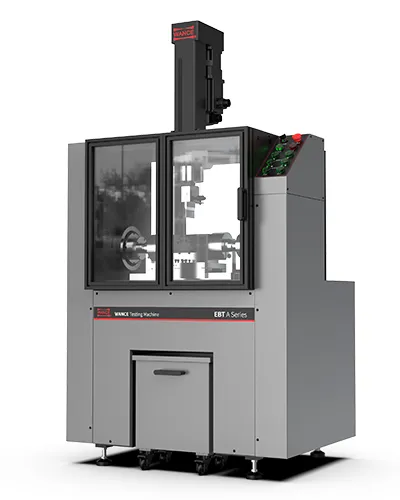

    Sheet Metal Bend Testing Machine

    The sheet metal bend testing machine is specifically designed for flexural evaluation of metallic sheets. It supports three-point bending and flattening (crushing) tests, enabling real-time acquisition of test force, bending angle, and other key parameters for detailed analysis of flexural performance and material ductility.

    Standards

    GB/T 15825.5-2008, GB/T 232-2010, ISO 7438-2005, VDA 238-100

    Features
    • The main frame adopts a vertical configuration. With a top-mounted servo electric cylinder connected to a spoke-type load cell, the tester provides high measurement accuracy, excellent linearity, and strong resistance to lateral forces.
    • The horizontal support rollers are positioned by a servo-motor-driven ball screw, enabling automatic and precise adjustment of test span according to specimen size and test requirements.
    • Equipped with a wide-voltage Yaskawa servo motor and controller, offering reliable power delivery, minimal maintenance, and excellent force/velocity control characteristics.
    • The arc-tooth synchronous belt provides backlash-free transmission with accurate ratio control, long-term operational stability, and maintenance-free performance.
    Specifications
    Model EBT204A EBT504A EBT105A
    Vertical maximum force 20kN 50kN 100kN
    Horizontal maximum force 20kN 50kN 100kN
    Force range 1%-100%FS 1%-100%FS
    Force accuracy 0.5% of reading 0.5% of reading
    Force resolution 1/500,000FS 1/500,000FS
    Position resolution, mm 0.3μm 0.3μm
    Piston maximum vertical speed 0.01-200mm/min 0.01-200mm/min
    Maximum vertical travel 150mm 200mm
    Horizontal supports moving speed 0.01-50mm/min 0.01-100mm/min
    Distance between support rollers 1-50mm 1-100
    Support roller ⌀20x70, ⌀30x70 ⌀20x70, ⌀30x70
    Mandrel diameter R0.8, R1.0, R1.1, R1.2, R1.3, R1.4, R1.5, R1.6, R1.8, R2.0, R2.5, R2.8, R3.0, R3.2, R3.6, R4.0, R4.4, R4.8 (Optional)
    Mold thickness/mandrel diameter for U bend 2.0, 2.2, 2.4, 2.6, 2.8, 3.0, 3.2, 3.6, 4.0, 5.0, 5.6, 6.0, 6.4, 7.2, 8.0, 8.8, 9.6 (Optional)
    Specimen size 0.5-4mm 0.5-4mm
    Dimension (WxDxH) 950x680x1720mm 1270x700x2174mm
    Electric supply 2kW (AC220V, 50HZ, single-phase) 2kW (AC220V, 50HZ, single-phase)
    Weight 750kg 1350kg
