HBT-A Series (500kN-3000kN)

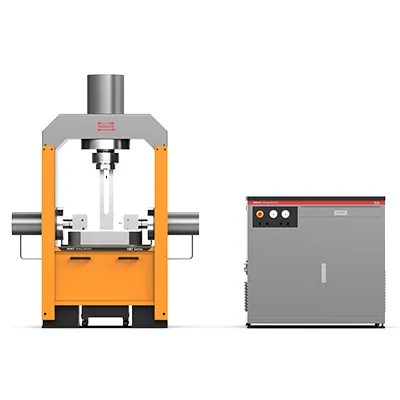

Metal Plate Bend Testing Machine
The bending testing machine adopts a robust three-cylinder loading structure, enabling rapid and flexible adjustment of test span and supporting full 180° bending of metallic plates and welded components. Designed for high-capacity flexural evaluation, the tester is capable of both constant loading-rate control and constant displacement-rate control, with seamless switching between the two modes.
Standards
GB/T 14452-93, GB/T 232-1999, ISO 7438, ISO 5173, GOST 6996, ASTM A370
Request a Quote
Specifications
| Model | | | | | |
| Max vertical force, kN | 500 | 600 | 1000 | 2000 | 3000 |
| Maximum horizontal force, kN | 300 | 400 | 400 | 1000 | 2000 |
| Measured accuracy | Class 1 | ||||
| Force resolution | 1/500000 | ||||
| Accuracy in synchronism | < 2% | ||||
| Displacement resolution, mm | 0.004 | ||||
| Displacement accuracy | ±1% of reading | ||||
| Force loading speed, kN/s | 0.2-20 | 0.4-40 | 0.6-60 | ||
| Vertical piston speed, mm/min | 290 | 300 | 200 | 180 | 150 |
| Vertical piston travel, mm | 200 | 490 | 345 | 350 | 500 |
| Horizontal speed, mm/min | 480 | 480 | 480 | 360 | 250 |
| Horizontal piston travel, mm | 75 | 275 | 185 | 175 | 205 |
| Support roller diameter, mm | ⌀30x130 | ⌀ 50x200m | ⌀50x200 | ⌀80x210 | ⌀100x240 |
| Mandrel diameter, mm | ⌀5- ⌀20 | ⌀5- ⌀20 | ⌀2- ⌀250 | ⌀2- ⌀250 | ⌀50- ⌀100 |
| Maximum span, mm | 150 | 550 | 370 | 350 | 400 |
| Machine dimension, mm (Length x Width x Height) | 1200x600x2200 | 1990x650x2430 | 1580x600x2200 | 1650x800x2450 | 2470x900x2800 |
| Machine weight, kg | 1200 | 3500 | 3000 | 5000 | 9000 |
| Electric supply | 380V, 50Hz, 3-phase | ||||
| Power, kW | 4 | 7 | 9 | 9 | 17 |
| HPU dimension, mm (Length x Width x Height) | Built-in | 1150x600x1100 | 1350x680x1100 | ||
| HPU weight, kg | 500 | 700 | |||
| Hydraulic oil | 46#, 80L | 46#, 100L | 46#, 100L | ||
We also provide a variety of accessories for all types of mechanical testing equipment.
