    ETT202X (200Nm)

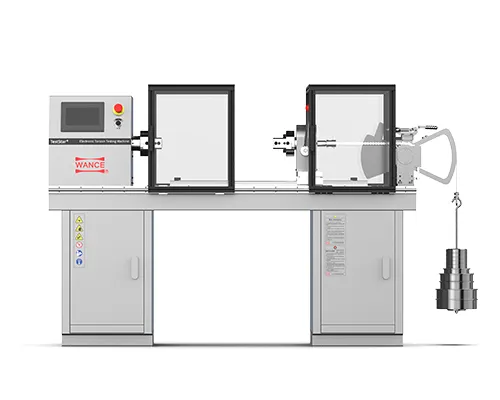

    Wire Torsion Testing Machine

    This machine is designed for torsional testing of aluminum, steel, copper, and aluminum-clad wire to evaluate their ability to withstand plastic deformation under single-direction or bidirectional twisting. It also reveals surface and internal defects of the wire during the torsion process.

    Specifications
    • Maximum torque, Nm: 200
    • Measured accuracy: Class 1
    • Torque accuracy: ±1%
    • Torque resolution: 1/500,000FS
    • Torsion speed, r/min: 60
    • Torsion speed accuracy: ±1.0% of setting
    • Specimen size, mm: ⌀1-⌀10
    • Dead weight mass, kg: 10-100
    • Dead weight mass accuracy: ≤±0.3%
    • Electric supply: 220V±10%, 50Hz
    • Power, kW: 1.3
    • Weight, kg: 500

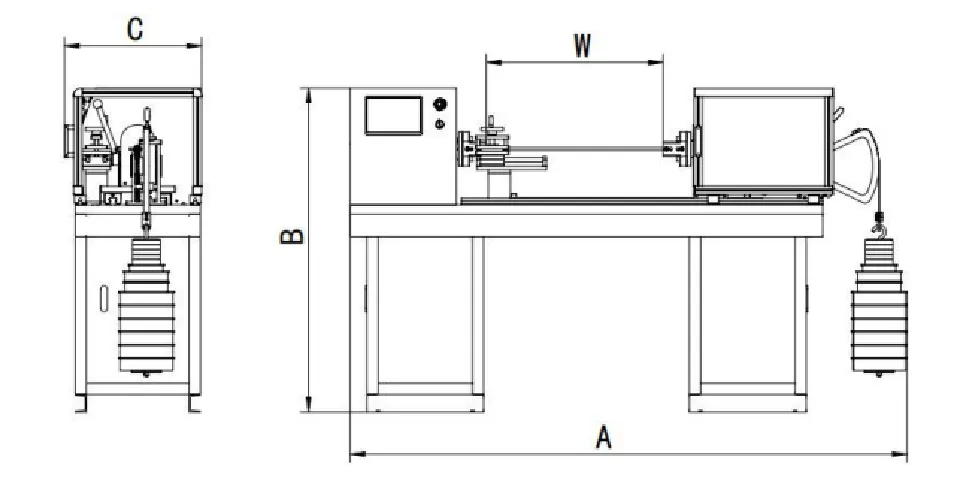

    Dimensions
    Model Dimension (AxBxC), mm Max. distance between grips, W, mm
    ETT202X 2000x1200x650 650

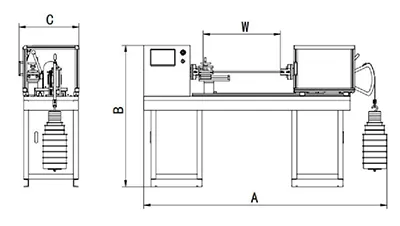

    Dimensions
