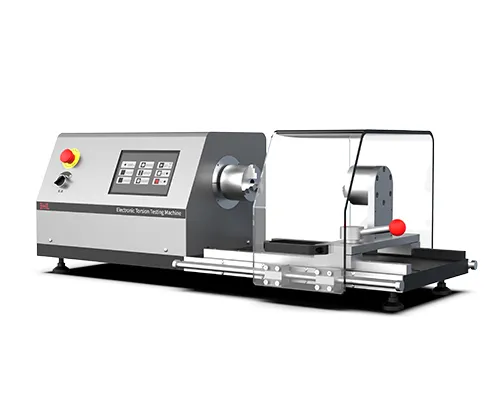

    Table-Top Torsion Testing Machine

    The table-top torsion testing machines adopt a compact benchtop structure featuring a low-backlash precision planetary gearbox and an imported servo motor. This configuration offers quiet operation, high transmission efficiency, and a wide speed range, with maximum output speed reaching 15r/min (5400°/min), significantly reducing the duration of conventional torsion tests. In addition to standard torsional evaluation, the tester supports torsional residual strain testing, making it particularly suitable for university laboratories and teaching applications.

    Function

    Suitable for torsional property testing of metallic materials, non-metallic materials, and composite specimens.

    Features
    • The load-bearing structure is machined as a single unit, ensuring high dimensional accuracy and excellent overall rigidity.
    • High-precision linear guides provide accurate alignment and contribute to consistent measurement accuracy across all test modes.
    • A high-accuracy torque sensor with carefully engineered mounting arrangement ensures excellent linearity, stability, and repeatability during torque measurement.
    • The mechanical design ensures high coaxial alignment, resulting in improved torque accuracy and reduced measurement error.
    • Equipped with a Yaskawa Σ-7 servo motor for superior motion control. Combined with a precision planetary gearbox, the drive system delivers ultra-low noise, low heat generation, and high transmission efficiency.
    • The torsion-angle measurement device uses a Swiss micrometer-scale indicator to achieve exceptional accuracy and responsiveness. The lightweight design improves specimen clamping efficiency, with angle resolution as fine as 0.001°, providing highly accurate and repeatable test results.
    Specifications
    Model TST501 TST202 TST502 TST103 TST203 TST303 TST503
    Maximum torque (Nm) 50 200 500 1000 2000 3000 5000
    Torque range, Nm 1-50 2-200 5-500 10-1000 20-1000 30-1000 50-1000
    Measured accuracy Class 0.5
    Torque reading accuracy ±0.5% of reading
    Torque resolution, Nm 1/500,000FS
    Torsion angle range, ° 0-10000
    Torsion angle accuracy ±0.5% of reading
    Troptometer angle resolution 0.001°
    Troptometer angle accuracy ±1.0% of reading
    Torsion speed, °/min 0.01-10800 0.01-5400 0.01-1800 0.01-1080 6-720
    Torsion speed accuracy ±1.0% of setting
    Grip distance, mm 300
    Gripping end diameter ⌀3- ⌀8 ⌀8- ⌀18 ⌀10- ⌀20 ⌀8- ⌀20 ⌀10- ⌀28
    Motor consumption, kW 0.4 0.85 0.85 1.3 2 2
    Electric supply 220VAC, 50Hz, single-phase
    Dimension, mm 950x340x300 950x350x400 1600 x422 x1200 1700x550x1200 1800x500x1350 1850x660x1200
    Weight, kg 60 100 500 700 750 750

    We also provide a variety of accessories for all types of mechanical testing equipment.
