    • HCT-E Series (600kN-3000kN)

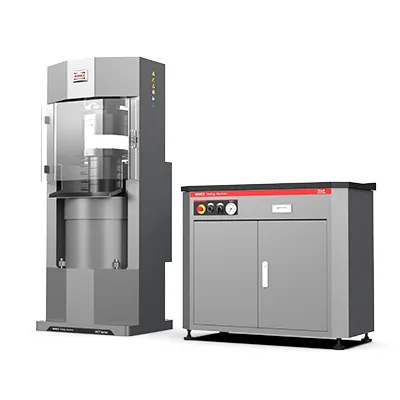

    Compression Testing Machine, Servo Motor Control

    The compression testing platform regulates hydraulic pressure and loading rate by controlling pump flow through a servo motor.

    The tester is designed for compressive strength testing of cement, concrete, and rock specimens. With appropriate fixtures and measurement accessories, the tester also performs concrete splitting tests and static modulus tests.

    Standards

    CS1, ASTM C39, ASTM C109, AASHTO T22, GB/T 50081(Part 6)

    Request a Quote
    Features
    • A monolithic cast-frame structure optimized by finite-element analysis ensures rational load distribution and excellent overall rigidity.
    • The main hydraulic cylinder adopts a dual-acting piston design, providing high reliability under repeated high-load operation.
    • The piston rod features a dual-layer nickel-chromium plating (0.1mm thickness), offering superior corrosion resistance and wear durability.
    • The piston and rod are manufactured as a single forged component, providing exceptional impact resistance and extended service life.
    • A high-accuracy column load cell provides excellent strength, stability, interchangeability, and repeatability, with a generous overload range and outstanding linearity.
    • The protective enclosure is formed from a single curved polycarbonate panel, ensuring full visibility during testing while providing reliable operator protection.
    • The system of the tester is driven by our DSP-based DTC-500 controller, featuring full-digital control, multi-channel data acquisition, accurate data processing, and user-friendly operation.
    • The hydraulic power unit is equipped with a cartridge-style logic valve from SUN (USA), enabling intelligent pressure regulation and stable hydraulic performance.
    • The hydraulic power system adopts a next-generation hybrid design inspired by German engineering concepts. Hydraulic flow is controlled by adjusting pump speed through a servo motor, enabling precise cylinder movement and accurate control of loading rate and pressure.
    Specifications
    Model HCT605E HCT106E HCT206E HCT306E
    Capacity, kN 600 1000 2000 3000
    Calibration accuracy Class 0.5
    Force accuracy ±0.5%
    Force range 1%-100%FS
    Force resolution 1/500,000FS
    Column spacing, mm 460 460 460 540
    Max. compression space, mm 310 310 310 310
    Platen adjustment Spacing block
    Compression platens, mm ⌀300
    Actuator (piston) stroke, mm 70
    Maximum actuator up speed, mm/min 90 90 105 65
    Frame dimension (LxWxH), mm 620x410x1540 700x530x1665
    Frame weight, kg 2000 2000 2000 2500
    Electric supply 3-phase 380VAC±10%
    Power, kW 2 4 4
    Hydraulic power unit dimension (LxWxH), mm 990x590x970
    Oil tank volume (L) 60
